Description

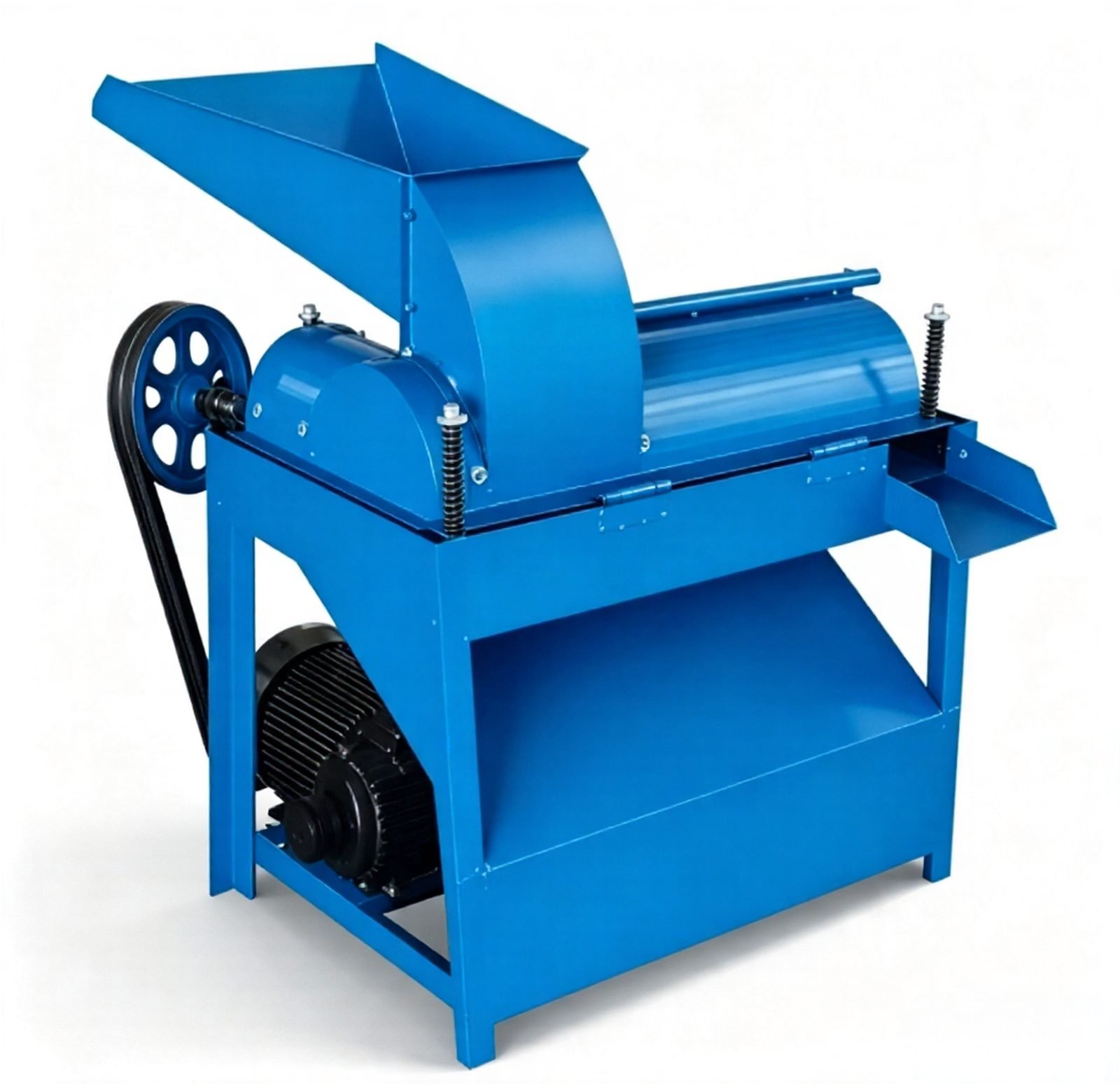

The NS-X121 is a compact fruit and nut peeler built to strip the green husk from freshly harvested macadamia nuts at around 150 kg/h. An integrated pit-separation section separates husk from nut inside the machine, and the 2.2 kW motor can be wired for a 220 V or 380 V supply. It is the entry model in the Nansheng peeler range and suits small farms, cooperatives and pilot processing lines.
Technical specifications of the NS-X121
| Model | NS-X121 |
|---|---|
| Capacity | ~150 kg/h |
| Dimensions (L x W x H) | 1,050 x 400 x 750 mm |
| Weight | ~126 kg |
| Power supply | 2.2 kW, 220 V or 380 V |
| Body material | Carbon steel |
| Packing volume | 0.80 CBM |
| Packed weight | ~176 kg |
What the NS-X121 handles
- Freshly harvested macadamia nuts with the green husk still attached
- Other fruit and nut crops that need an outer skin or rind removed
- Small daily volumes of roughly 1.2 tonnes per 8-hour shift
Key features
- ~150 kg/h throughput from a low 2.2 kW motor
- Integrated pit separation: husk and nut leave the machine separately
- Small footprint of 1,050 x 400 x 750 mm and only about 126 kg
- Runs on 220 V single phase or 380 V three phase
- Simple, low-maintenance design for small and medium plants
Frequently asked questions about the NS-X121
How many macadamia nuts can the NS-X121 husk per hour?
The NS-X121 is rated at approximately 150 kg/h of fresh macadamia nuts, which is about 1.2 tonnes across an eight-hour shift. Real throughput depends on nut size, husk thickness and how evenly the machine is fed, so plan for a small margin below the rated figure.
Can the NS-X121 run on a 220 V single-phase supply?
Yes. The NS-X121 uses a 2.2 kW motor that can be wired for either 220 V or 380 V. Tell us your supply when you request a quote and the machine will be configured and tested for that voltage before it ships.
Does the NS-X121 separate the husk from the nuts?
Yes. The NS-X121 has an integrated pit-separation design, so husk and nut are separated inside the machine instead of needing a second pass or a separate separator.
How much floor space does the NS-X121 need?
The machine measures 1,050 x 400 x 750 mm and weighs about 126 kg, so roughly 1.5 m x 1 m of clear floor is enough for operation and access. At 126 kg it can be repositioned with a pallet jack.
What is the minimum order quantity and how do I get a price?
Minimum order is one unit. Email nanshengtechnology@gmail.com or send a WhatsApp message to +86 133 7302 3075 with your material, target output and destination port, and we will reply with an FOB price and lead time.
Request a quote or ask a question
Tell us what you need and our sales team will come back with price, packing size, shipping options and lead time, usually within one business day.
- Email: nanshengtechnology@gmail.com
- Phone / WhatsApp: +86 133 7302 3075
To get an accurate quotation, please tell us:
- The material you process (macadamia, cashew, pine nut, coffee cherry, other nuts)
- Your target output per hour or per day
- Your power supply: 220 V single phase or 380 V three phase
- Your destination port or country
Minimum order quantity is one unit. OEM branding and customisation are available on request, and specifications are confirmed in writing before production. Dongguan Nansheng Technology Co., Ltd., Dongguan, Guangdong, China.
Related machines

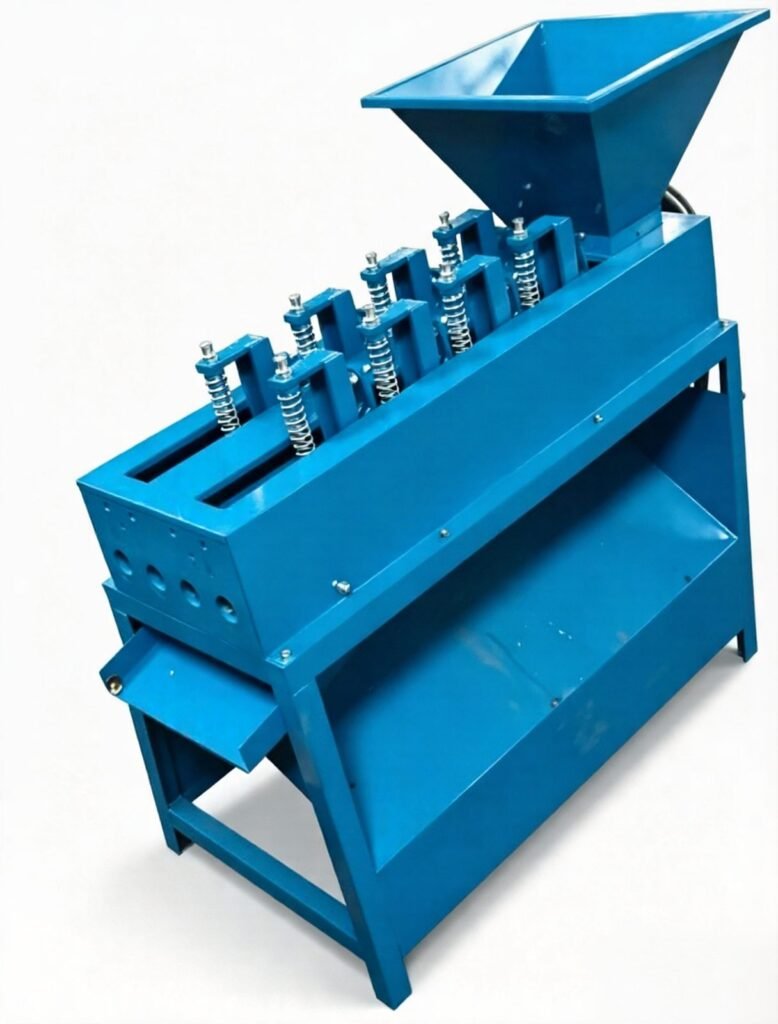

- Macadamia Green Husk Peeler – Large (NS-X122, 500 kg/h)
