Pine Nut Threshing Machines

Pine nut threshing machines break the cones and separate the seeds with a toothed crusher followed by blower separation, in a single pass. The work is abrasive, so drive size and build quality matter more at this stage than at most others in a pine nut line.

Two models: NS-S121 and NS-S122

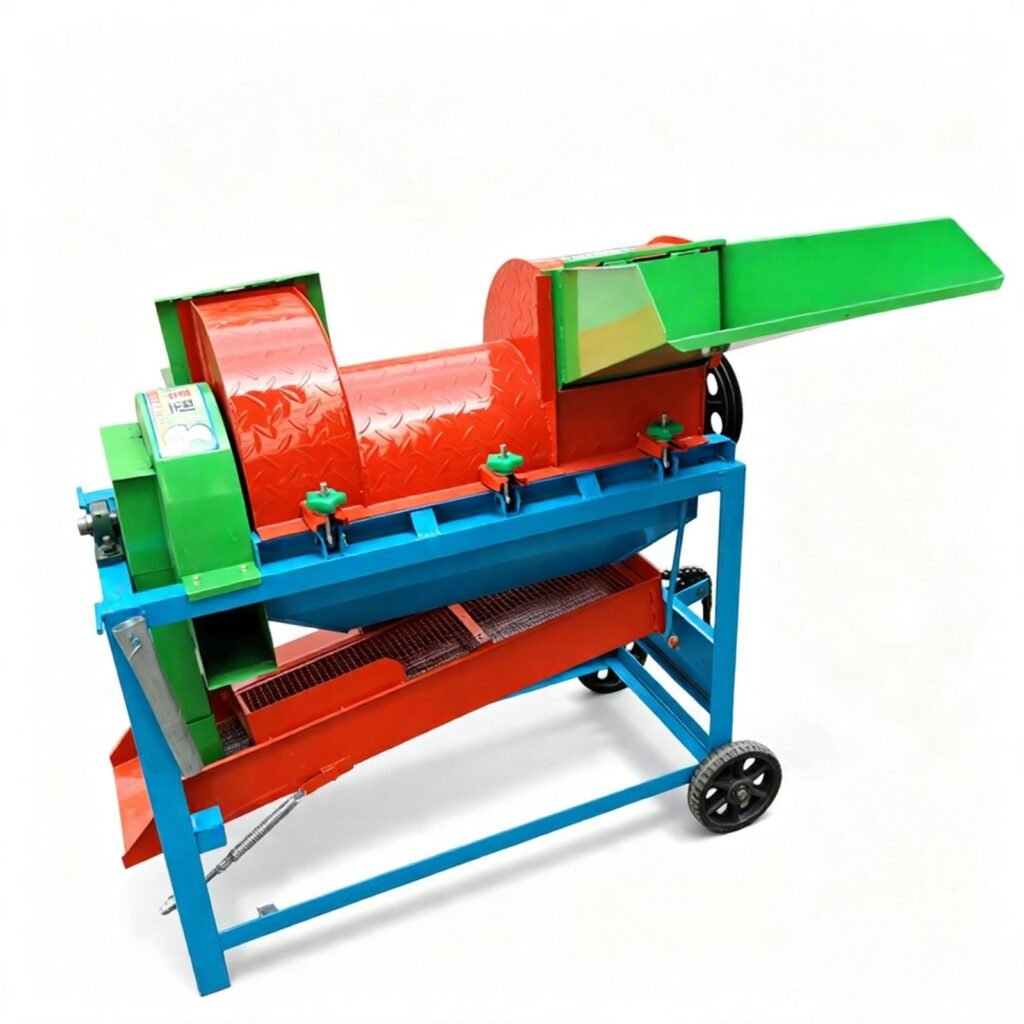

NS-S121 Standard — ~100 kg/h, 3 kW, 220 V. Toothed crusher plus blower separation, 1,200 × 700 × 1,000 mm, net weight ~120 kg. Also handles rice and rapeseed, which is useful on mixed farms.

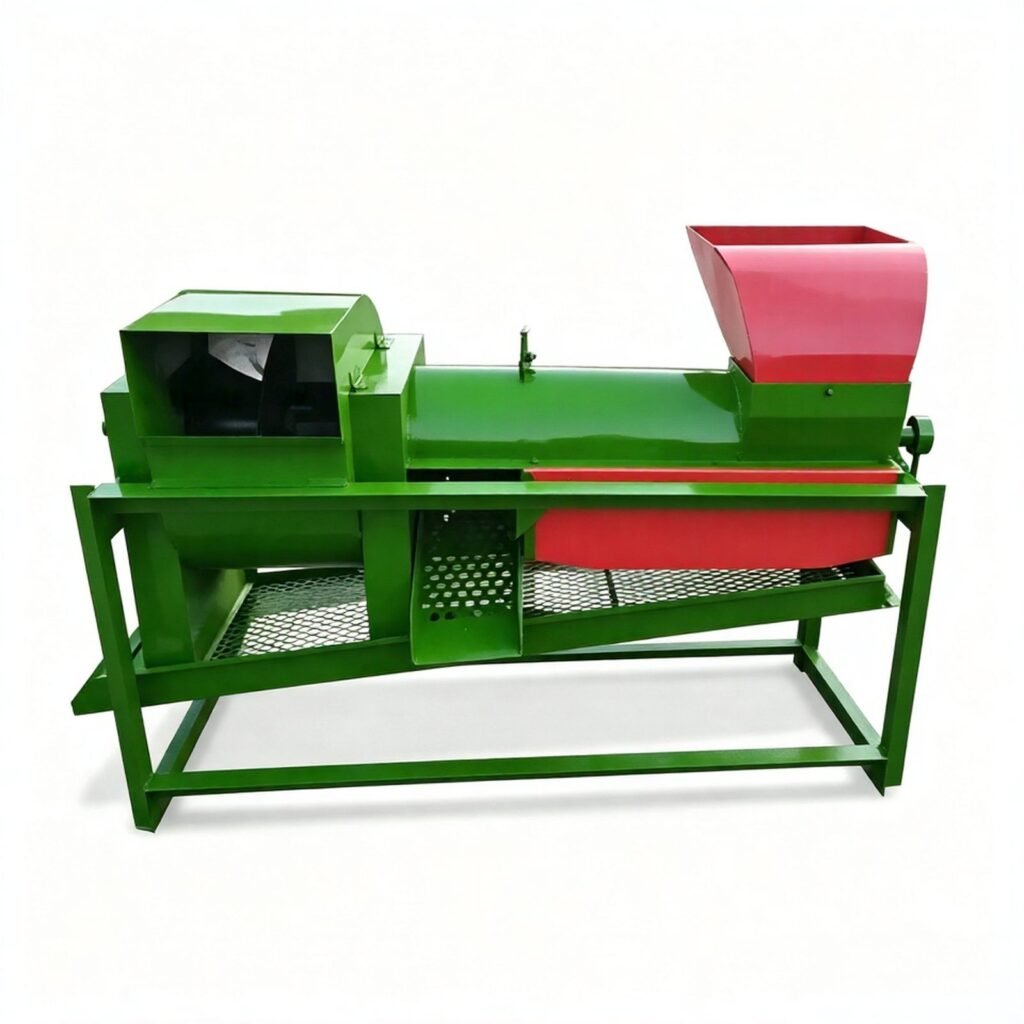

NS-S122 High Capacity — ~200 kg/h, 2 kW, 220 V, with a larger threshing chamber and a continuous-duty drive, 1,350 × 1,100 × 1,400 mm, net weight ~120 kg.

Both models use the same separation principle. The difference is throughput and duty cycle, not the process. Because the drive is built for the site supply, confirm the nameplate voltage on the quotation rather than assuming it.

Which one fits your throughput

Size from the peak day, not the average. Divide peak intake by effective working hours, then derate the rated kg/h by 20–30% for wet cones and small seed. A site peaking at 600 kg a day over eight effective hours needs about 100 kg/h, which is the NS-S121. A site running two shifts at 1.2 t a day belongs in the NS-S122.

Single-phase or three-phase supply

The standard model suits sites without a three-phase supply. If the site already runs three-phase power and works long shifts, the high-capacity model is the better fit. Send the supply details before ordering so the drive is built and tested for it.

What the kg/h rating does not tell you

A rated throughput assumes a given cone size, moisture content and steady feed. Wet cones bridge in the chamber and cut output; very dry cones break more cleanly but raise dust. Weigh input, output and broken-seed share for the first three shifts, and the rating becomes a number you can plan production against instead of a brochure figure.

What to send for a matched quote

Peak daily intake in kg, and the effective working hours per day
Cone size range and moisture at intake
Site voltage and phase
Destination port, because packed volume drives freight: 1.00 CBM for the NS-S121, 2.10 CBM for the NS-S122

Send those four numbers and we reply with the model, crate size and lead time.
